Wired Door magnet reed switch for Metal rolling door, NO Type, surface fixing
Model: JS-RC55
Parameter :
| Dimension | 105L x 37 x 9.5 mm |
| Size of magnet: | 105L * 15 * 15 mm |
| Wired output | side out |
| senser alarm type | No type |
| Materials: | Zinc Alloy |
| Length of wires | 37.5 cm |
| Withstand voltage : | 100 V DC |
| Loading current: | 10mA |
| Sensor feedback distance: | 35mm |
| Cables: | wires with zinc case |
| Temperature | -25°~70°C |
| Humidity | -10~85% |
| Packing: | 1pcs per bag |
| Bag weight: | 0.2Kg / bag |
| Cartons: | 50sets per cartons |
| Carton Weight: | 10kg |
Feature:
1. Door sensor feedback, reed swtich, working with access control system
2. Suitable for metal rolling door in stock, garage door, shoping rolling door.
3. Zinc Alloy housing, waterproof, fireproof
4. 35mm sensor distance, high sensitivity
5. NO type, NC type or NO/NC type optional
6. Can be used in access control or alarm system
7. Surface fixed with screw, easy to install.

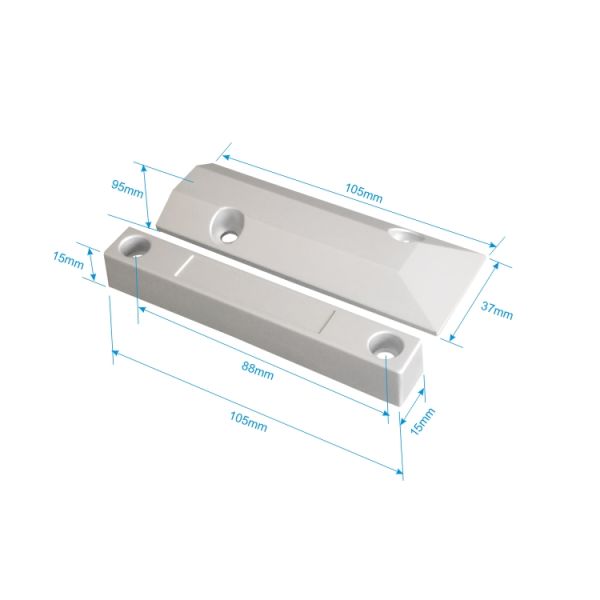

Dimension Drawing:
Installation Place:
Q & A:
1. How can we order as trails for this production?
You can check with ours to confirm if we have local distrubitor in your country, if not, plz order it from us directly .
2. How can I pay ?
You can pay directly by paypal, western union, or bank transit.
3. How can I get the cargos?
We will send cargos within 3 days upon receipt the payment, and send by DHL, Fedex or TNT couriries, For bigger and weight cargos, we can send by air or sea, plz double check with us when confirm the order.
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 5 years
warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,
please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt
lock, Electronic lock. Door lock. Access control.
